1. Manual Transmission (MT)

How it works: The driver operates a clutch pedal to disconnect the engine from the gearbox, then manually moves a gear lever to select different gear ratios. Inside, pairs of gears on parallel shafts mesh at different ratios. A synchronizer matches gear speeds before engagement to prevent grinding.

Strengths:

• Highest mechanical efficiency (up to 95%+), minimal power loss
• Simple and durable, low maintenance cost
• Full driver control over gear selection

Drawbacks:

• Requires skill and physical effort in traffic
• Being phased out of mass-market vehicles due to convenience demand

Common in: entry-level cars, performance-oriented vehicles, commercial trucks in developing markets

2. Automatic Transmission (AT)

How it works: AT uses a torque converter — a fluid coupling filled with transmission oil — to transfer power from the engine to a planetary gear set. The torque converter acts like two fans facing each other: the engine spins one impeller, which pushes oil to spin the other, transmitting power without a hard mechanical connection. The planetary gear set then provides multiple gear ratios, shifted automatically by hydraulic valves controlled by the transmission computer.
A lock-up clutch engages at cruising speeds to mechanically connect the engine and transmission, eliminating the 8-10% energy loss from the fluid coupling.

Strengths:

• Smoothest operation, minimal vibration
• Extremely durable, handles high torque loads
• Mature technology with well-established repair networks

Drawbacks:

• Complex and expensive to manufacture
• Slightly lower efficiency than manual or DCT
• Heavier and larger than other types

Common in: luxury vehicles, SUVs, heavy-duty trucks, vehicles in North America and Japan

3. Continuously Variable Transmission (CVT)

How it works: Instead of fixed gear ratios, CVT uses two cone-shaped pulleys connected by a steel belt or chain. By hydraulically adjusting the gap between the pulley halves, the belt rides at different effective diameters, creating an infinite range of ratios. There are no discrete "gears" — the ratio changes continuously.

Strengths:

• Perfectly smooth acceleration with zero shift shock
• Keeps engine at optimal RPM for fuel efficiency
• Compact and lightweight

Drawbacks:

• Cannot handle high torque, steel belt may slip under hard acceleration
• "Rubber band" feel — engine note rises without corresponding speed increase
• Repair often requires full unit replacement, expensive

Common in: small-displacement economy cars, Japanese family cars (Honda, Nissan, Subaru)

4. Dual-Clutch Transmission (DCT)

How it works: DCT is essentially two manual transmissions packed into one unit. Typically, two clutches handle odd gears (1, 3, 5, 7) and even gears (2, 4, 6) separately, with reverse gear assignment varying by manufacturer. While one gear is engaged and transmitting power, the next gear is already pre-selected. Shifting only requires switching from one clutch to the other — taking milliseconds.

DCT comes in two variants: — Dry clutch: lighter, more efficient, but prone to overheating in traffic — Wet clutch: oil-cooled, handles higher torque, more durable but slightly heavier

Strengths:

• Fastest shift speed of all transmission types
• Near-manual efficiency, minimal power loss
• Sporty, engaging driving feel

Drawbacks:

• Jerky at low speeds, especially in stop-and-go traffic
• Higher failure rate than AT and CVT
• Complex repairs, costly maintenance

Common in: performance cars, European vehicles (VW DSG, Audi S-Tronic, Porsche PDK)

5. EV Transmissions: Single-Speed and Beyond

How it works: Electric motors produce maximum torque from zero RPM and maintain high efficiency across a very wide speed range (typically 2,000 to 15,000 RPM). This means most EVs do not need multiple gears at all. A single-speed reduction gearbox — typically with a ratio of 8:1 to 10:1 — reduces the motor's high RPM to a practical wheel speed.

For example, a Tesla Model 3 uses a 9:1 ratio: the motor can spin up to 15,000+ RPM, and the gearbox reduces it to about 1,700 RPM at the wheels for highway speeds.

Some high-performance EVs use a two-speed transmission. The Porsche Taycan uses a short first gear for explosive launch acceleration and a taller second gear for efficient high-speed cruising. Hyundai's 2-Stage Motor System, found in the IONIQ 5 N, applies a similar concept.

Single-speed pros: simple, light, reliable, nearly zero maintenance Single-speed cons: slight efficiency compromise at very high speeds
Two-speed pros: better acceleration and highway efficiency Two-speed cons: added complexity, weight, and cost

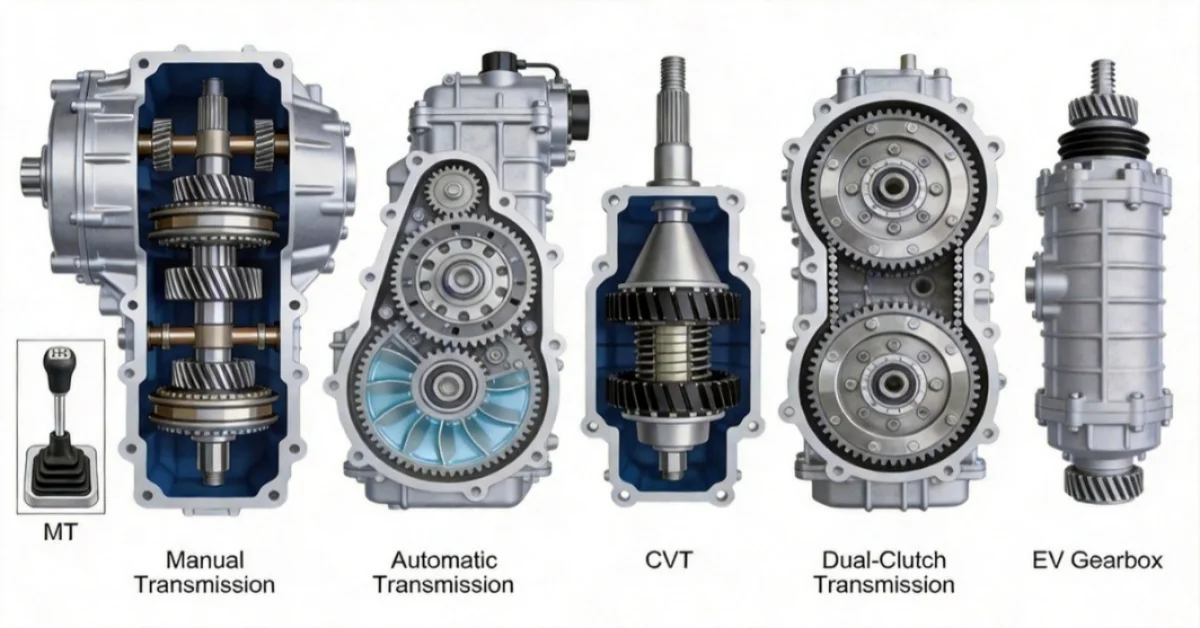

Quick Comparison

MT: Most efficient, most engaging, fading from market
AT: Most durable, smoothest comfort, highest cost
CVT: Smoothest acceleration, most fuel-efficient, limited torque capacity
DCT: Fastest shifting, sporty feel, complex maintenance
EV single-speed: Simplest, most reliable, covers most driving needs
EV two-speed: Best of both worlds for performance, higher cost

Which Transmission Is Right for You?

— Daily commuting and comfort: AT or CVT
— Fuel economy on a budget: CVT
— Performance and driving enjoyment: DCT or MT
— Electric vehicle: single-speed is more than enough for 95% of drivers
— High-performance EV: two-speed (Porsche Taycan, Hyundai IONIQ 5 N)

The automotive world is shifting. Manual transmissions are becoming niche, AT is retreating to premium segments, CVT and DCT dominate mass-market cars, and EVs are rewriting the rules entirely. But understanding how these systems work helps you make smarter decisions — whether buying a car, specifying components, or just appreciating the engineering under your feet.
